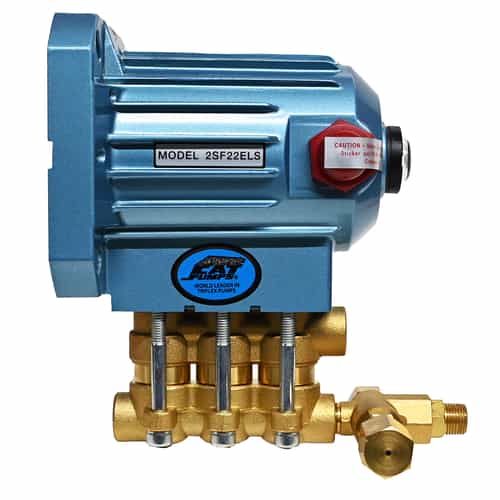

CAT Pumps 2SF22ELS Direct Drive Plunger Pump 2.2GPM, 2000PSI, Left Shaft
Brand:
Mfr. Model #:
2SF22ELS
KR Part #:
PU2SF22ELS
Weight:
11.60 lbs
(0)CAT Pumps 2SF22ELS Direct Drive Plunger Pump 2.2GPM, 2000PSI comes with a pressure sensitive regulating unloader which will set the system pressure. Left hand shaft. Brackets not included.
NOTE: This pump does NOT come with oil
Prop 65
Technical Specifications
Max GPM: 2.2
RPM: 1725
Max PSI: 2000
Inlet Port: 3/8 inch
Crankcase Capacity: 11.15 ounce
Stroke: 6.3 millimeter
Max Temperature: 160 degrees F
Bore: 18 millimeter
Product Description
CAT Pumps Direct Drive Plunger Pump
Designed with a hollow shaft intended to be directly bolted to a c-face electric motor or gas engine. Pump features a brass constructed manifold with 304 stainless steel valve assemblies. Includes a regulating unloader to prevent pressure build up protecting the pump.
Dimensions: 9.13" x 6.65" x 6.50"
Features:
- Ultimate portability - less than 11 pounds - less than 10" long.
- Unique spring loaded inlet valves and the flow through ceramic plungers provides a smooth, steady flow.
- Optional 3450 or 1725 RPM models for gas or electric drive.
- Regulating Unloader is standard on each pump to assure system pressure control and pump protection.
- Please note that this pump does NOT come with oil - find authentic CAT Pumps Oil here.
Specifications:
- Max Flow: 2.2 GPM
- Max Pressure: 2000 PSI
- Inlet Port Size: 3/8" NPT(F)
- Discharge Port Size: 3/8" NPT(M)
- RPM: 1725
- Drive Type(s): Direct
- Material: Brass
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
