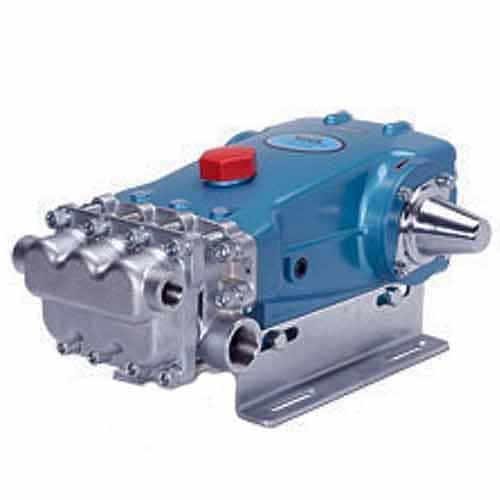

2530 CAT Pump 25 GPM, 1200 PSI, 1025 RPM
Brand:
Mfr. Model #:
2530
KR Part #:
PU02530
Weight:
67.00 lbs
(0)This is a ceramic triplex plunger pump that works at 1025 RPM and 25 GPM. The most popular pumps for self-service bays, brackets for mounting are not included.
NOTE: This pump does NOT come with oil
Prop 65
Technical Specifications
Bore: 32 millimeter
Crankcase Capacity: 84 ounce
Inlet Port: 1 1/4 inch
Max GPM: 25
Shaft Diameter: 30 millimeter
Stroke: 38.5 millimeter
RPM: 1025
Max Temperature: 160 degrees F
Max PSI: 1200
Product Description
CAT Pump 25 GPM, 1200 PSI
CAT Pumps 2530 is a triplex plunger pump designed to deliver smooth, low pulsation flows at a wide variety of pressures and flow rates. Perfect for use in continuous duty, high pressure applications including Car/Truck Wash, Industrial Cleaning, Pressure Washing, Reverse Osmosis, Water Misting and more. Exclusive high pressure seal design means seals are lubricated and cooled by the solution being pumped.
Dimensions: 19.11" x 15.04" x 7.8"
Standard Features:
- Oil-bath crankcase
- Heat treated valves and seals
- Forged brass or stainless steel manifolds
- Solid ceramic plungers
- Rated to from 140° to 160° F. depending on the model.
- Seal options up to 180° F. available
- Wet ends can be serviced without entering the crankcase.
- Please note that this pump does NOT come with oil - find official CAT Pumps Oil here.
